200W backpack laser cleaning machine

Short Description:

Backpack laser cleaning machine, with the advantages of easy installation, easy control and automation. Backpack cleaning machine is specially developed according to customer needs, on the basis of simple operation, no chemical reagents, no medium, no water cleaning, more with small volume, light weight, easy to carry

Send email to us Download as PDF

Product Detail

Product Tags

Technical parameter table

Operating environment
Content	LC200W
Supply voltage	Standard AC220V±10%, 50/60Hz
Supply voltage	Optional single battery, 100W continuous work 80-90min
Power consumption	≤1500W
Working environment temperature	5℃～40℃
Working environment humidity	≤80%
Optical parameters
Average laser power	≥200W
Power instability	＜5%
Laser Working Mode	Pulse
Pulse width	150-190ns
Maximum monopulse energy	1.7mJ
Power regulation range（%）	10-100( Gradient Adjustable)
Repeat frequency（kHz）	20-200（Gradient Adjustable）
Fiber length	1.5m
Cooling mode	Air cooling
Cleaning Head Parameters
Scan range (length * width)	0mm~100 mm, continuously adjustable;Biaxial supporting 8 scanning modes
Scanning speed	Max 12 m/s
Field mirror focal length（mm）	160mm（ Optional 210mm/254mm/330mm/420mm）
Depth of focus	About 5 mm
Mechanical parameters
Machine size（Length, width and height）	About 268mm135mm445mm（Do not contain batteries） About 268mm191.5mm445mm（Contain the battery）
Machine Weight	About 12.5 Kg（Do not contain batteries）
Machine Weight	About 17 Kg（Contain the battery）
Cleaning head weight	＜0.75Kg
Mode of operation	Wireless control screen

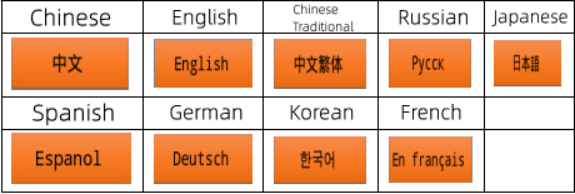

At present, the system supports Chinese, traditional Chinese, English, Russian, Japanese, Spanish, German, Korean, French and other 9 languages, and also supports custom languages.
